Air Compressor Bracket/ARB Twin Air Compressor Kit – Toyota Landcruiser 300 series – Underbody

Part Number: TLR682504

This complete installation kit provides all the components required for an operational under body mounted compressor and is compatible with all variants of the LC300 without the need for any removal or modification of OE components such as, the OE subwoofer found in the VX, Sahara, Sahara ZX and GR sport variants.

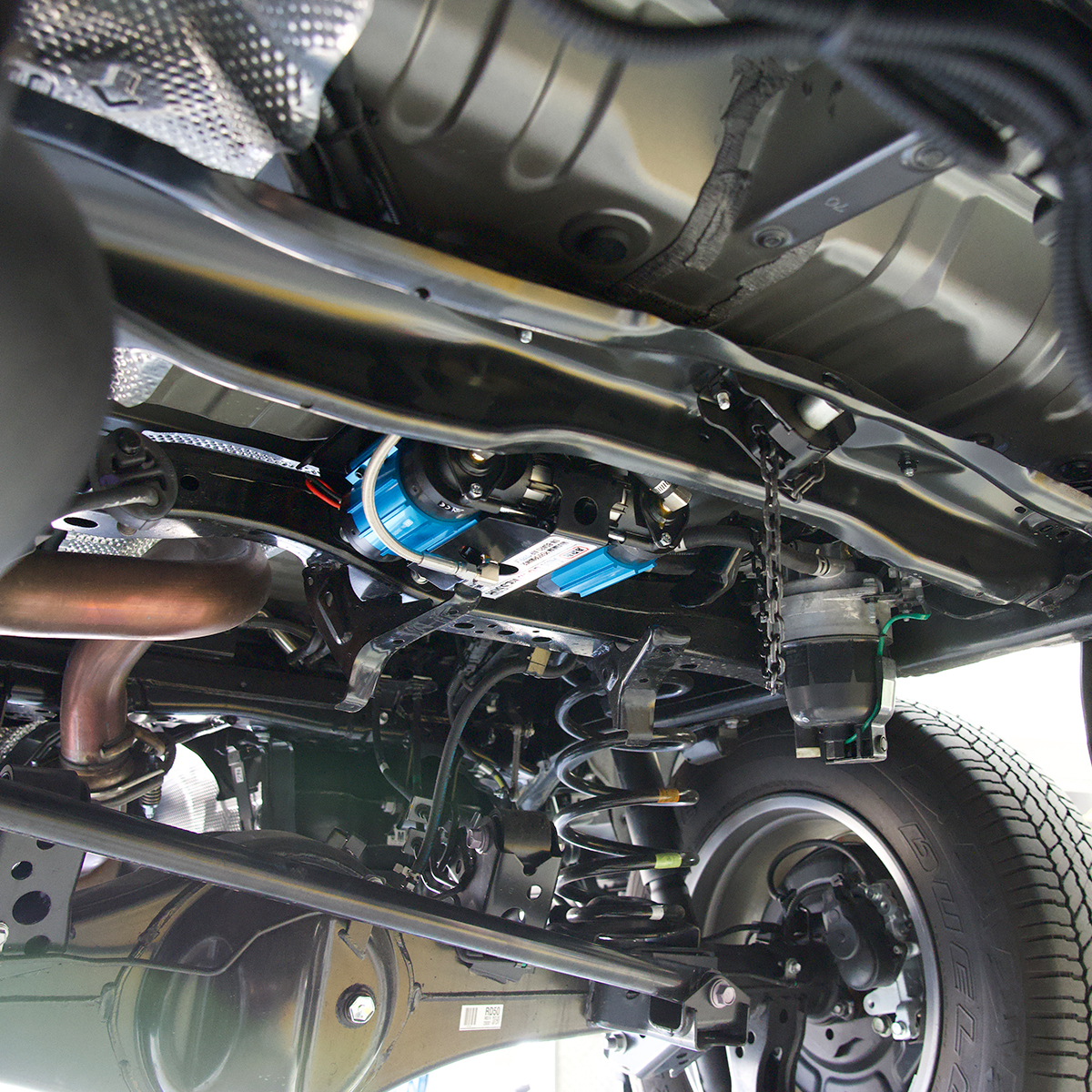

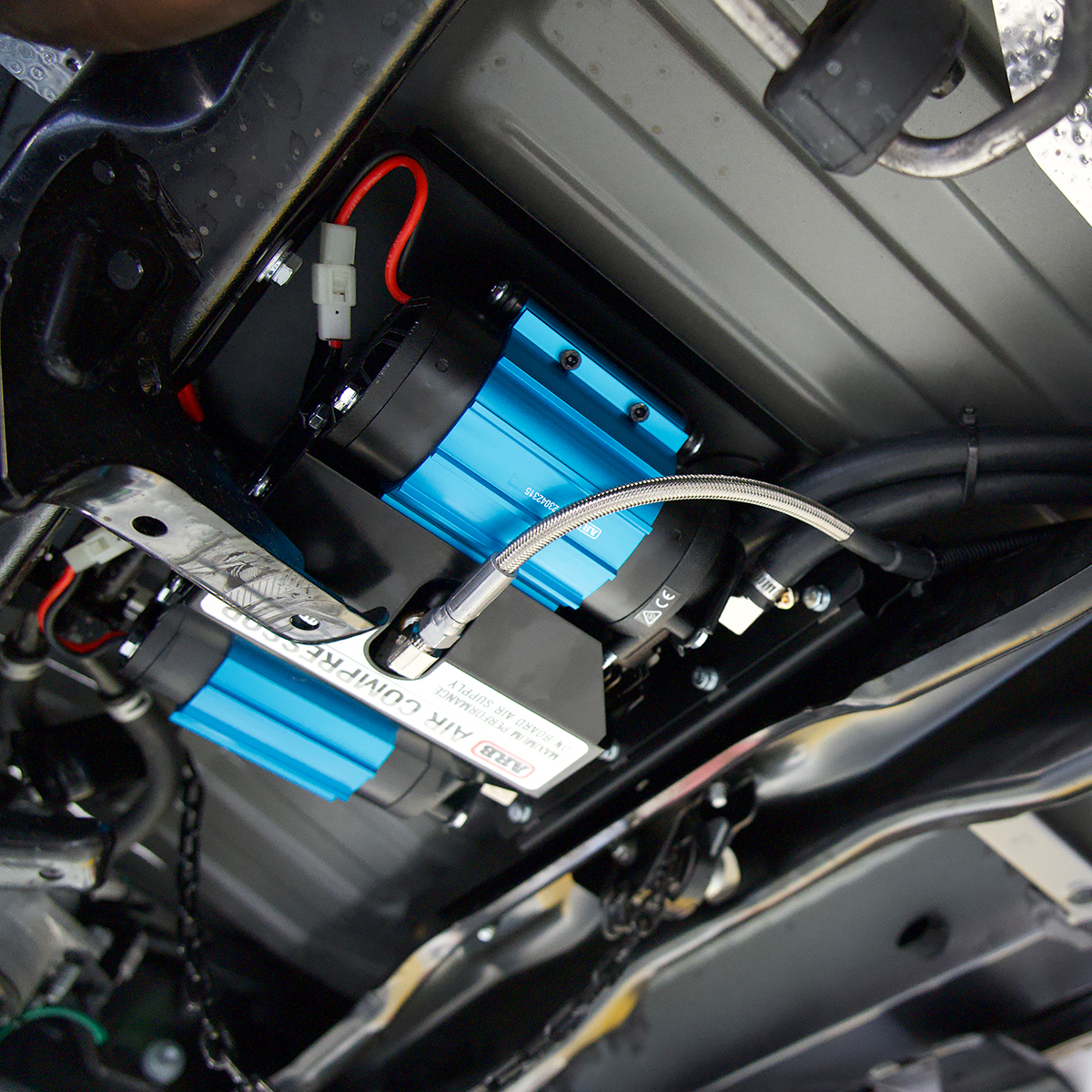

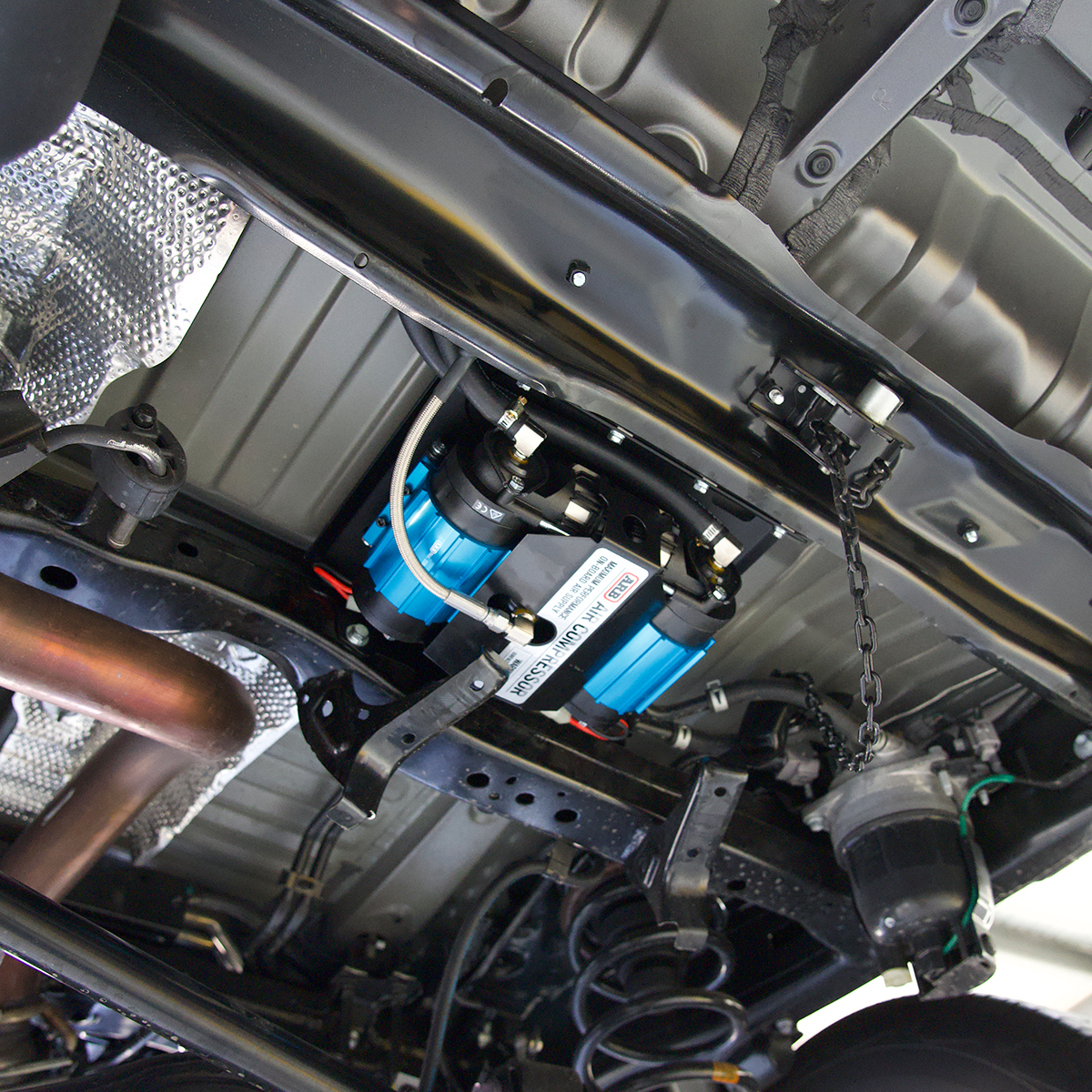

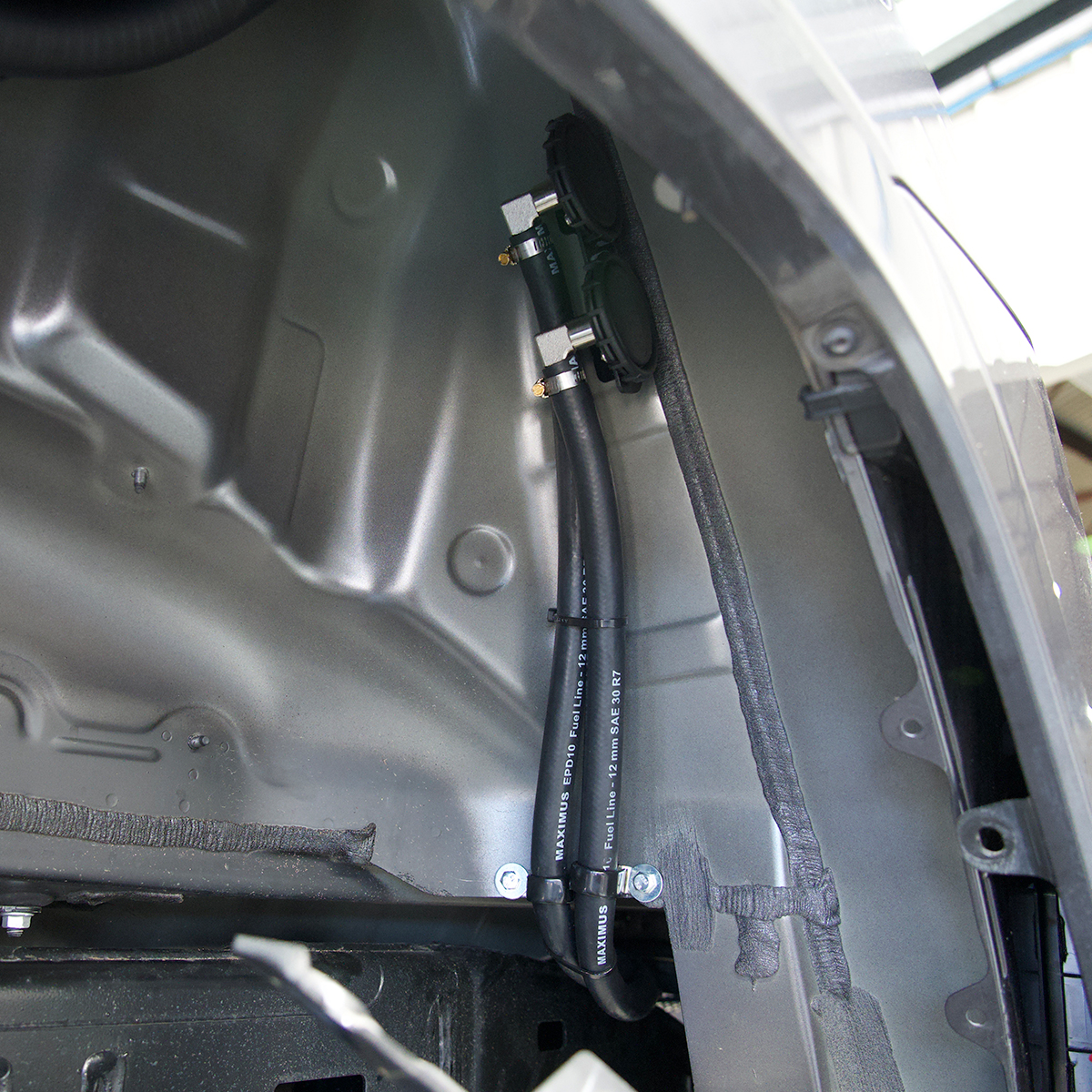

The bracket has been developed using the latest 3D modelling software and is designed to fit in the available space above the spare wheel, the kit also includes the required items to relocate the air compressors intake breathers up into the inner guard to avoid water ingress in the air compressor.

An internal switch and air coupling facia bracket is supplied as standard; however, you can also choose to mount the air coupling externally with either the TLR Products right hand side Multi Accessory Plug Bracket or left hand side Multi Trailer Plug Bracket with the additional TLR Products Air Coupling Bracket as an optional extra.

Features:

• Switch and recessed outlet facia panel
• Air intake relocation bracket
• Plastic cut template for switch and outlet
• Suits both ARB twin and single air compressor models
• Space saving design mounts under the body of the vehicle
• Laser cut from zinc coated 2 mm steel.
• Powder coated in a black textured finish for added corrosion resistance and aesthetics.
• Use of pre-existing holes. No drilling required.

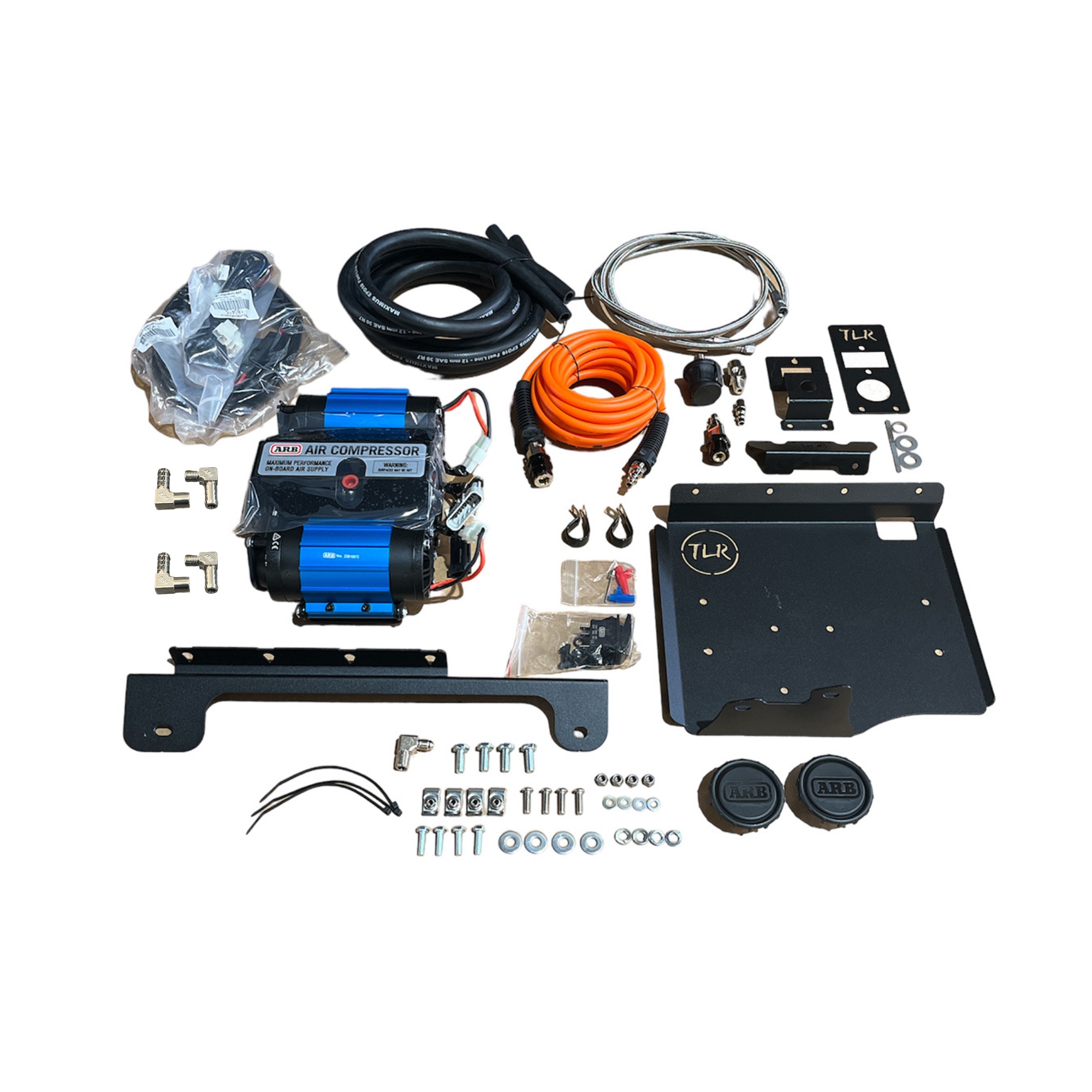

Includes:

• TLR Products Compressor Bracket set.
• Fitting kit including all hardware and fasteners required for fitment.
• ARB Twin Brushed Compressor.
• ARB Pump Up Kit.
• Air Intake Relocation Bracket and fittings.
• ARB Hose Reinforced JIC-4 2M​
• ARB Air Coupling​​

Note:

• Weight: 16 kg
• Dimensions: 480 x 290 x 120 mm
• Warranty: 3 years
• Fitting time: 2 hours

DOWNLOAD BROCHURE HERE.

DOWNLOAD FITTING INSTRUCTIONS HERE.

TLR Products is Australian owned, with all products designed and manufactured in Newcastle, NSW.
