Air Compressor Bracket/ARB Twin Air Compressor Kit – Toyota Prado 250 series – Underbody

Part Number: TLR682109

This is a Complete Kit including the TLR mounting bracket set and ARB Twin Brushed Compressor and components required for an operational air compressor mounted under the body of the Toyota Landcruiser 250 series.

About the Bracket:

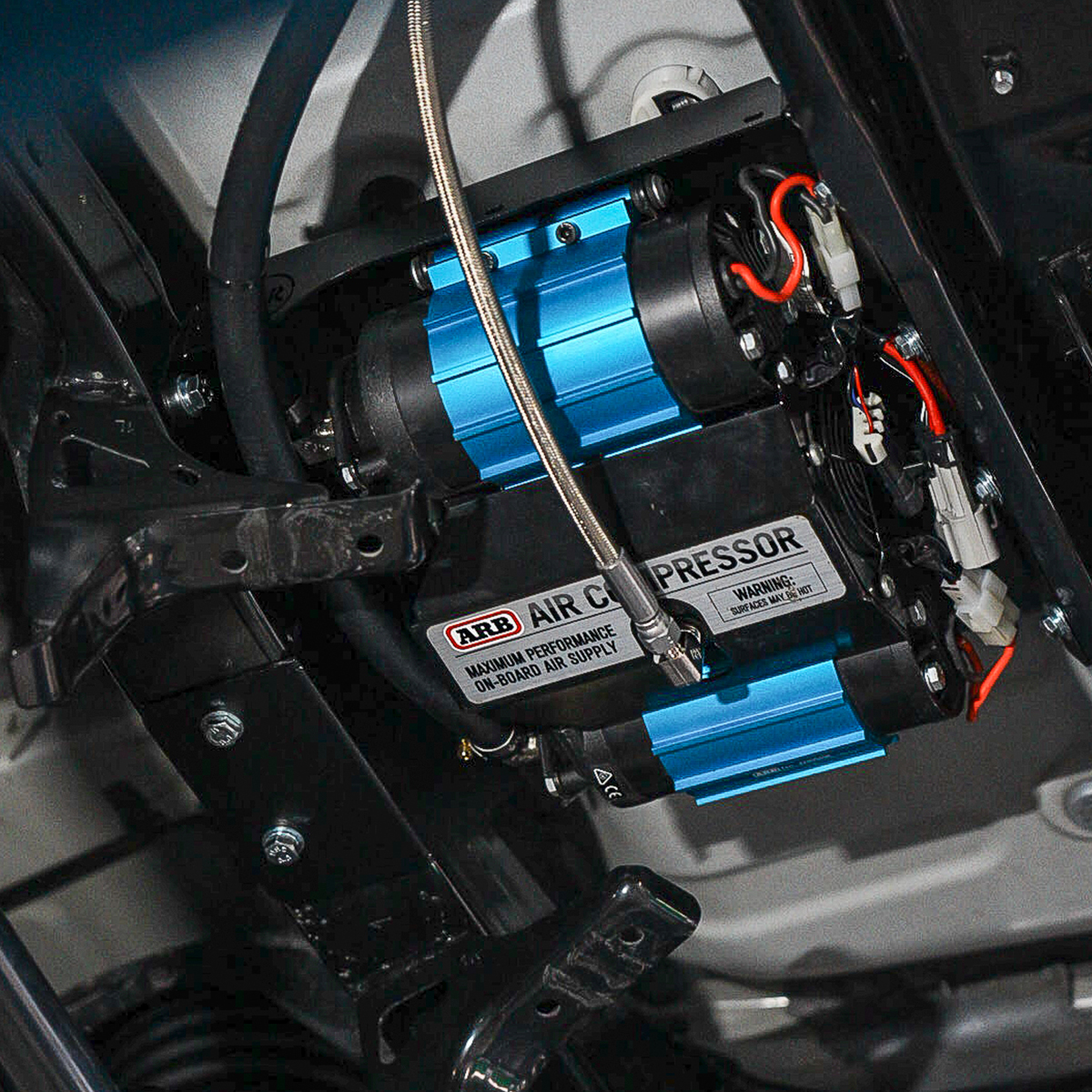

This TLR Products bracket lets you mount an ARB Twin or Single Air Compressor (Brushed or Brushless) under the body of your Toyota Prado 250 Series. It fits all variants and installs using existing holes with no drilling or modification to OE parts needed.

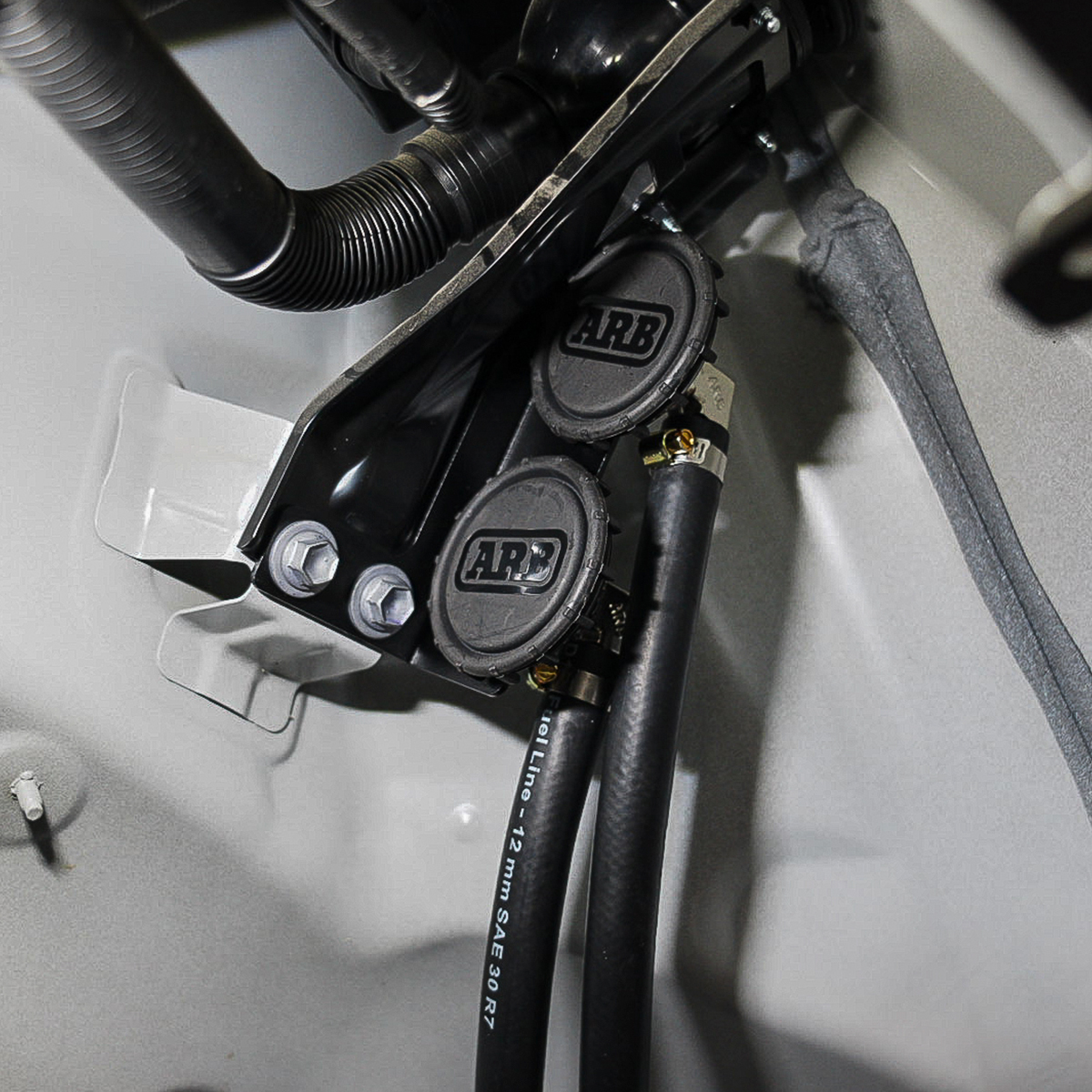

The bracket fits neatly above the spare wheel and includes parts to relocate the compressor’s intake filters into the inner guard, helping to protect against water ingress.

An internal switch and air outlet bracket is included. Although if you prefer an external air outlet, you can pair this kit with the optional TLR Left-Hand Side Multi Trailer Plug Bracket (TLR712102) and Air Coupling Bracket (TLR710001) to mounting the Air coupling on the rear bumper bar of the vehicle.

Features:

• Versatile Compatibility – Suits both ARB Brushless OR Brushed, Twin OR Single Air Compressor models.

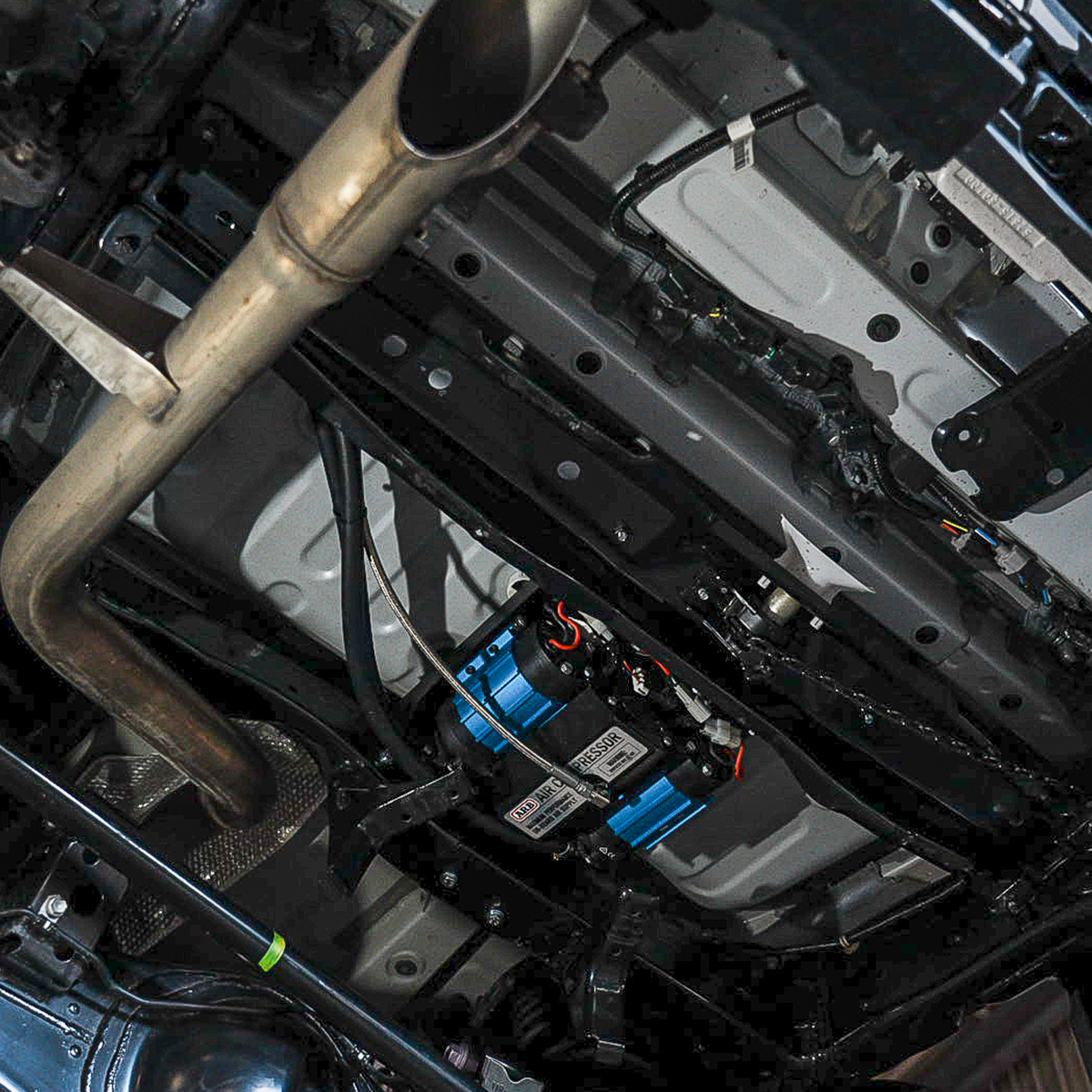

• Space Saving Design – Mounts neatly under the body, above the spare wheel.
• Durable Construction – Laser cut from zinc-coated 2.00mm steel.
• Corrosion Resistant Finish – Powder coated in a black textured finish for rust protection.
• Hassle Free Installation – Use of pre-existing holes. No drilling of the body work required.
• Comprehensive Kit – Electrical Switch and Coupling mount included.

Includes:

• Products Compressor Bracket set (TLR682105)
• ARB Twin Brushed Air Compressor (CKMTA12)
• Air Intake Relocation Bracket and fittings.
• ARB Braided Hose Reinforced JIC-4 2 meters (0740205)
• ARB Elbow JIC-04 (M) – JIC-04 (F) (0740104)
• ARB Air coupling (0740111)
• ARB Pump Up Kit V2. (171302V2)
• ​Fitting kit including all hardware and fasteners required for fitment.
• Air intake filter relocation fittings, hose and clamps.
• Switch and Air coupling facia bracket.
• Interior plastic cut template.

Note:

• Weight: 17kg
• Dimensions: 540 x 290 x 320
• Warranty: 3 years
• Fitting time: 60min for bracket (additional required for compressor)

TLR Products is Australian owned, with all products designed and manufactured in Newcastle, NSW.
