Air Compressor Bracket / ARB Twin Brushed Compressor Kit – Toyota Prado 250 series – Rear Inner Guard

Part Number: TLR682108

This is a Complete Kit including the TLR mounting brackets and ARB Compressor and components required for an operational air compressor in the rear left quarter panel of the Toyota Landcruiser 250 series.

About the Bracket:

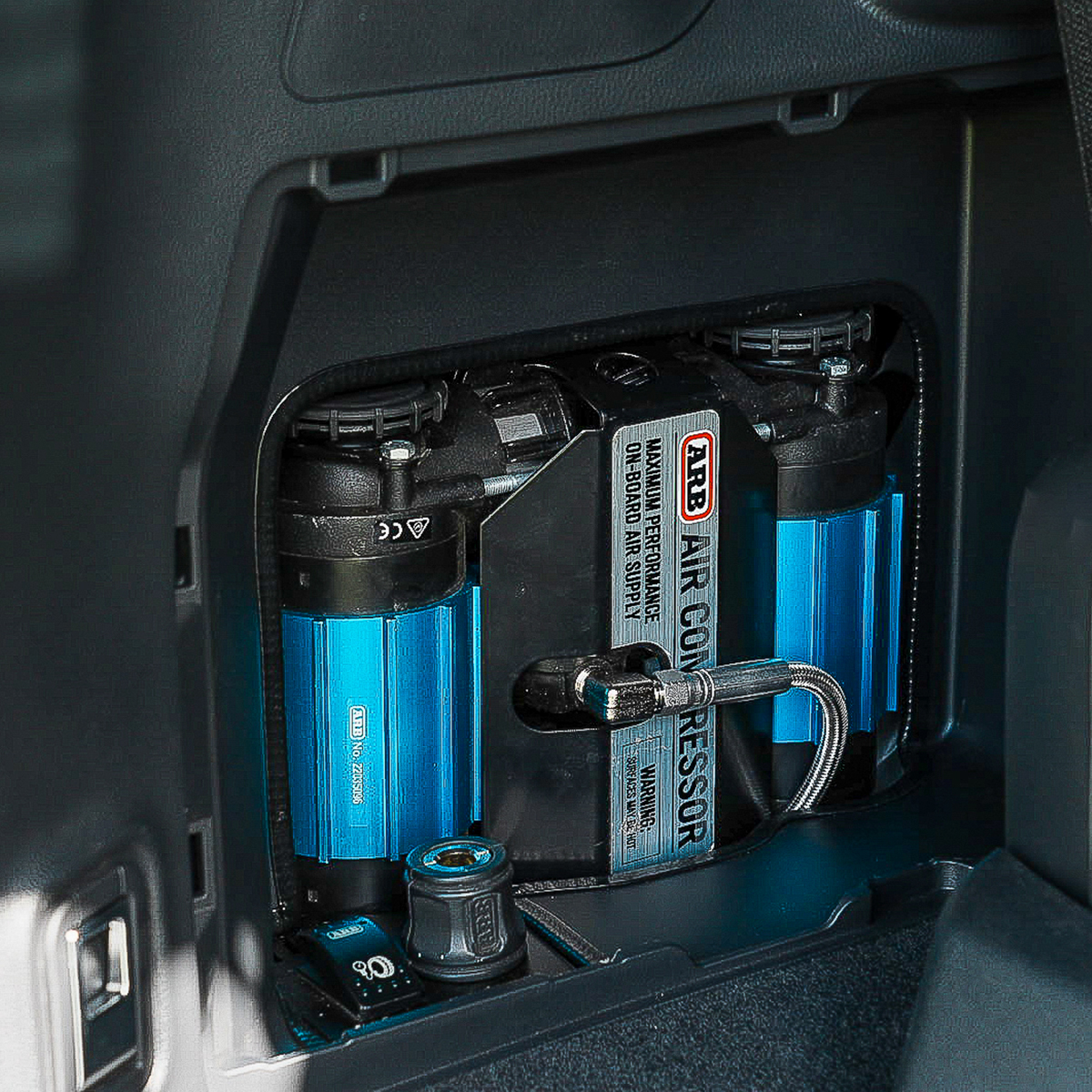

The TLR Products Air Compressor Bracket provides a clean and practical solution for securely mounting your ARB Brushless or Brushed, Twin or Single Air Compressor. This bracket set also includes a dedicated mount for the electrical switch and air coupling.

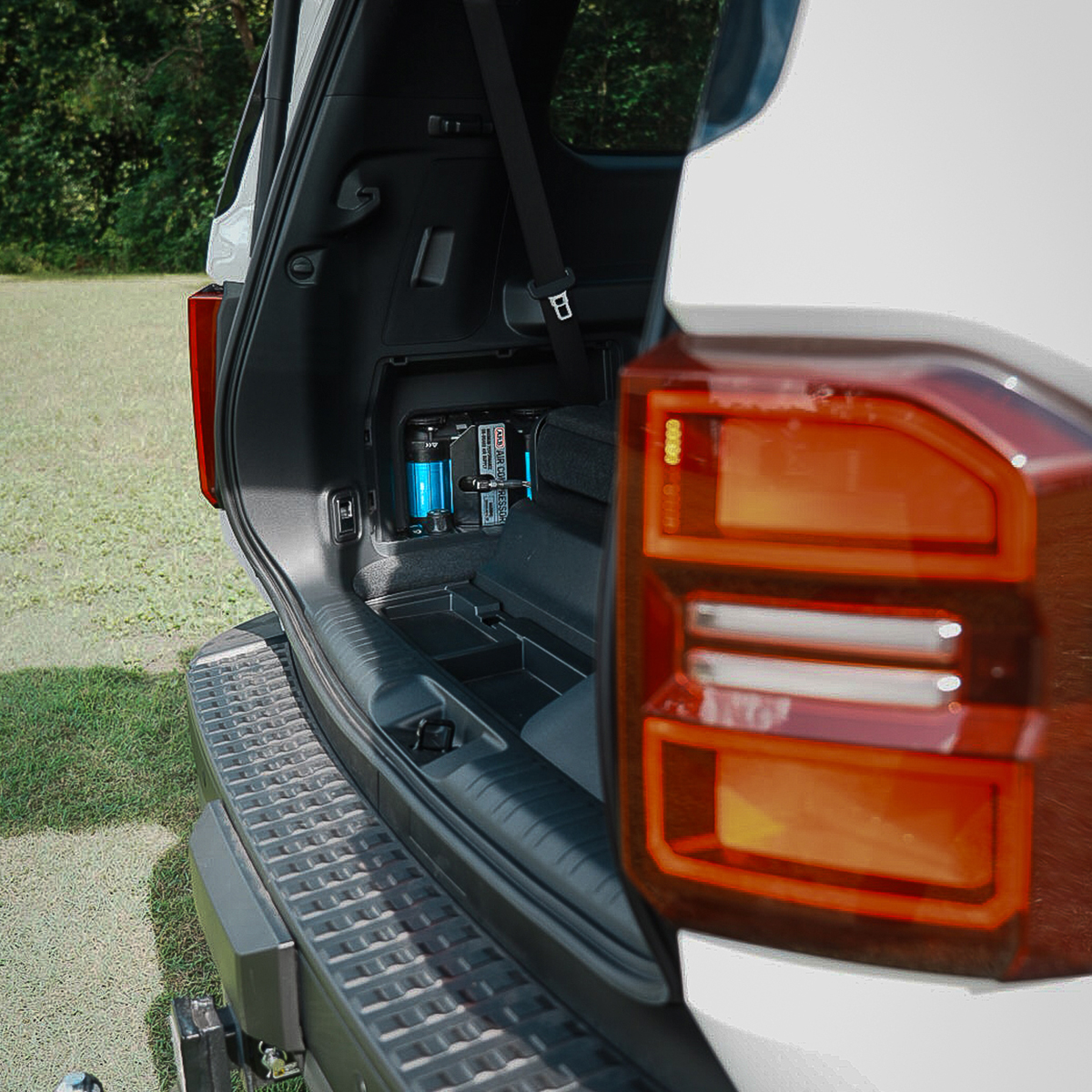

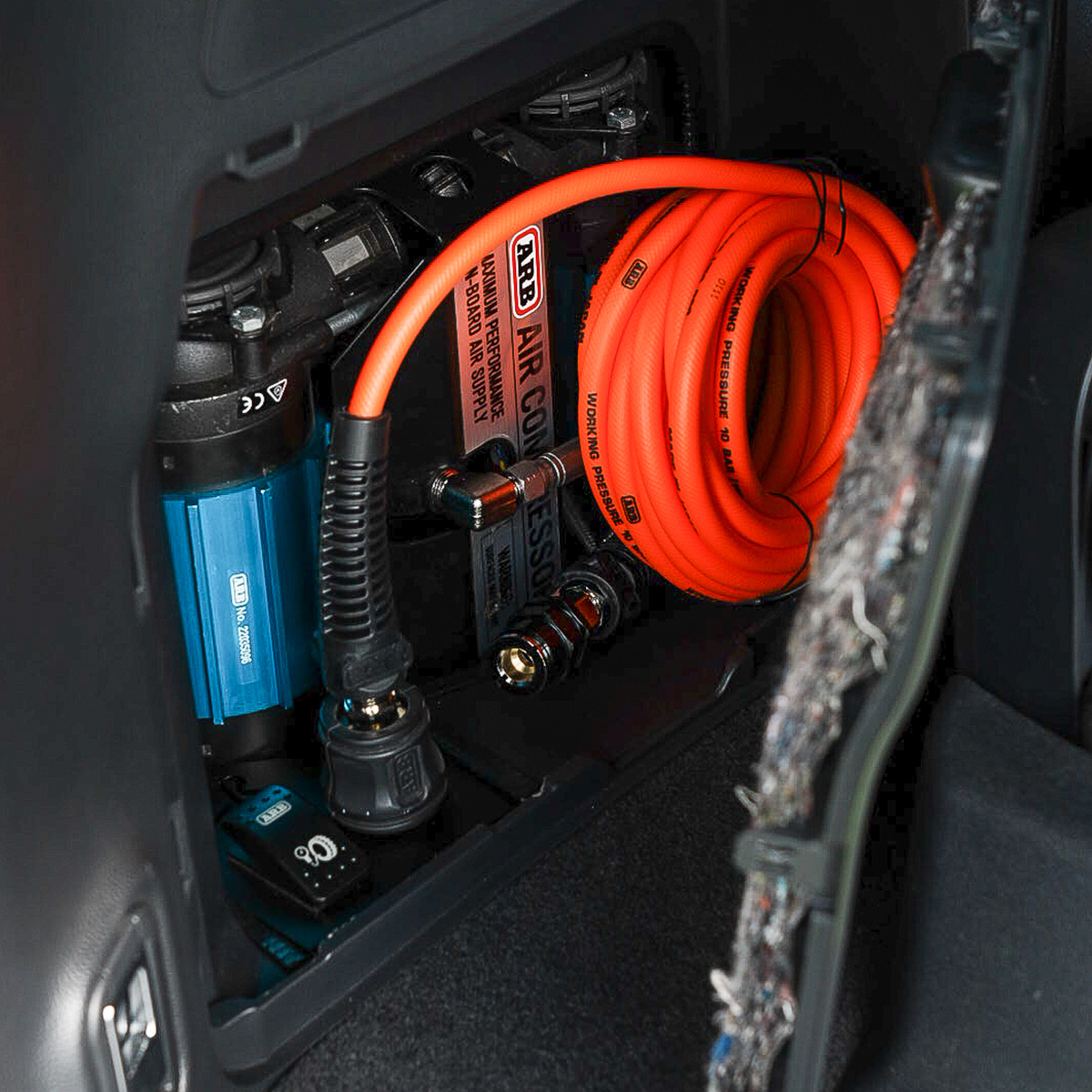

Designed to fit within the open space behind the rear left-hand side inner guard, the bracket positions the compressor far enough back to retain usable storage and leaving room for accessories such as an air hose or tire inflator to be stored conveniently within the compartment. It also ensures adequate ventilation around the compressor when the compartment door is open during use.

The Mounting bracket features six-point mounting, including four structural M8 bolts that utilize OE captive nuts located in the floor panel providing exceptional strength, durability, and long-term reliability.

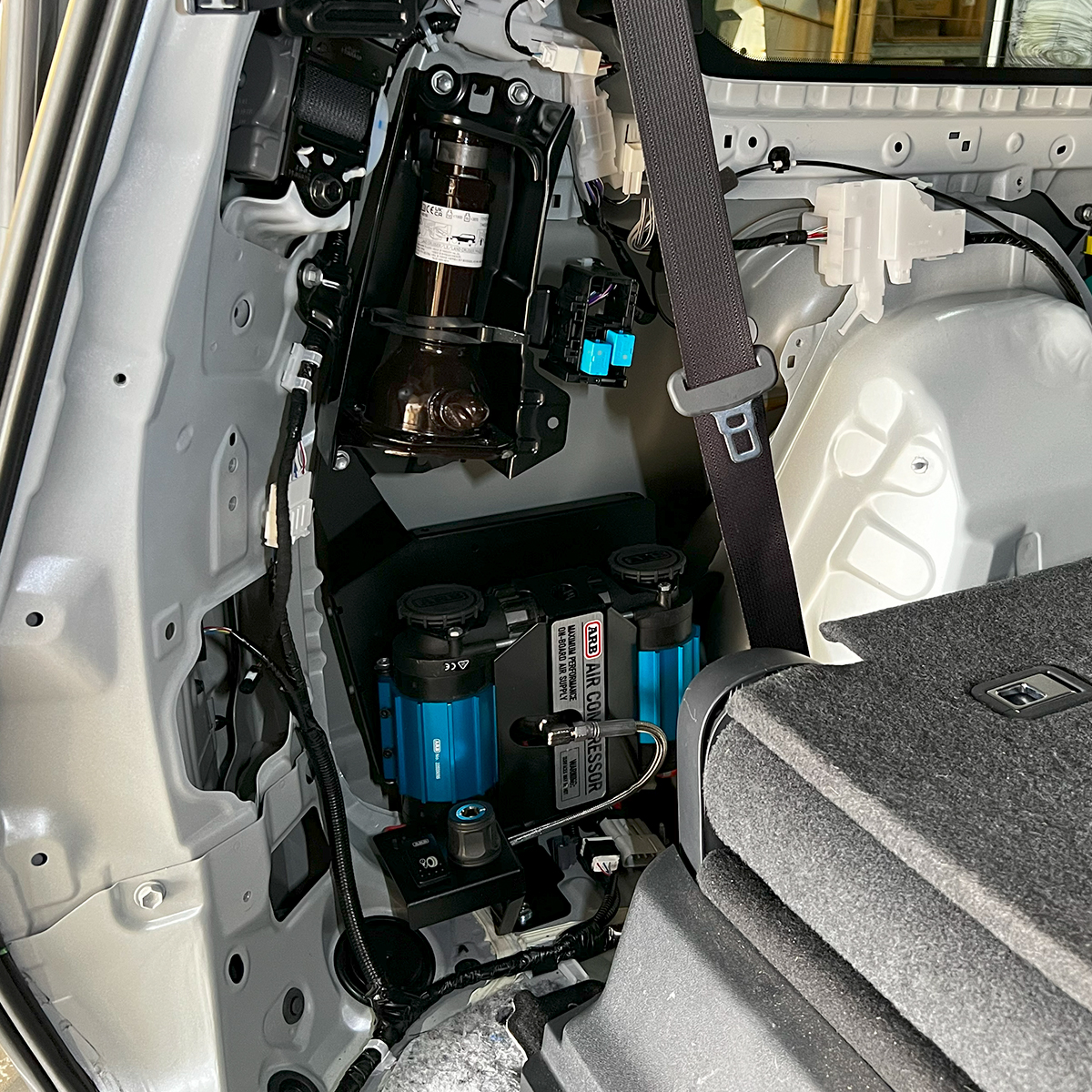

For added versatility, TLR Products offers a compatible Air Tank Mounting Kit (TLR682106), which includes a high-mount switch and coupling bracket.

Please note: Installing the tank kit requires relocation of the factory bottle jack.

Features:

• Versatile Compatibility – Suits both ARB Brushless OR Brushed, Twin OR Single Air Compressor models.
• Space Saving Design – Fits in the open space in rear quarter of the vehicle.
• Durable Construction – Laser cut from zinc-coated 2.00mm steel.
• Corrosion Resistant Finish – Powder coated in a black textured finish for rust protection.
• Hassle Free Installation – Use of pre-existing holes. No drilling of the body work required (Note: plastic cut required in internal storage cavity).
• Comprehensive Kit – Electrical Switch and Coupling mount included.

Includes:

• TLR Products Compressor Bracket set (TLR682103).
• ARB Twin Brushed Air Compressor (CKMTA12)
• 1x ARB Pump Up Kit (171302V2)
• 1x ARB Hose Reinforced JIC-4 0.3 Meter (0740201)
• 1x ARB Adapter Fitting (0740104)
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight: 16.0 kg
• Dimensions: 660mm x 480mm x 180mm
• Warranty: 3 years
• Fitting time: 60 mins

  TLR Products is Australian owned, with all manufactured products designed and made in Newcastle, NSW.
