Electrical Accessory Bracket – Ford Ranger Super-Duty / Ranger XL – LHS engine Bay

Part Number: TLR814002

This TLR Products bracket is a neat and simple solution to provide a mounting location for electrical accessories like fuses, circuit breakers etc. under the bonnet of the Ford Ranger Next Gen Ranger Superduty and “XL” Ranger series

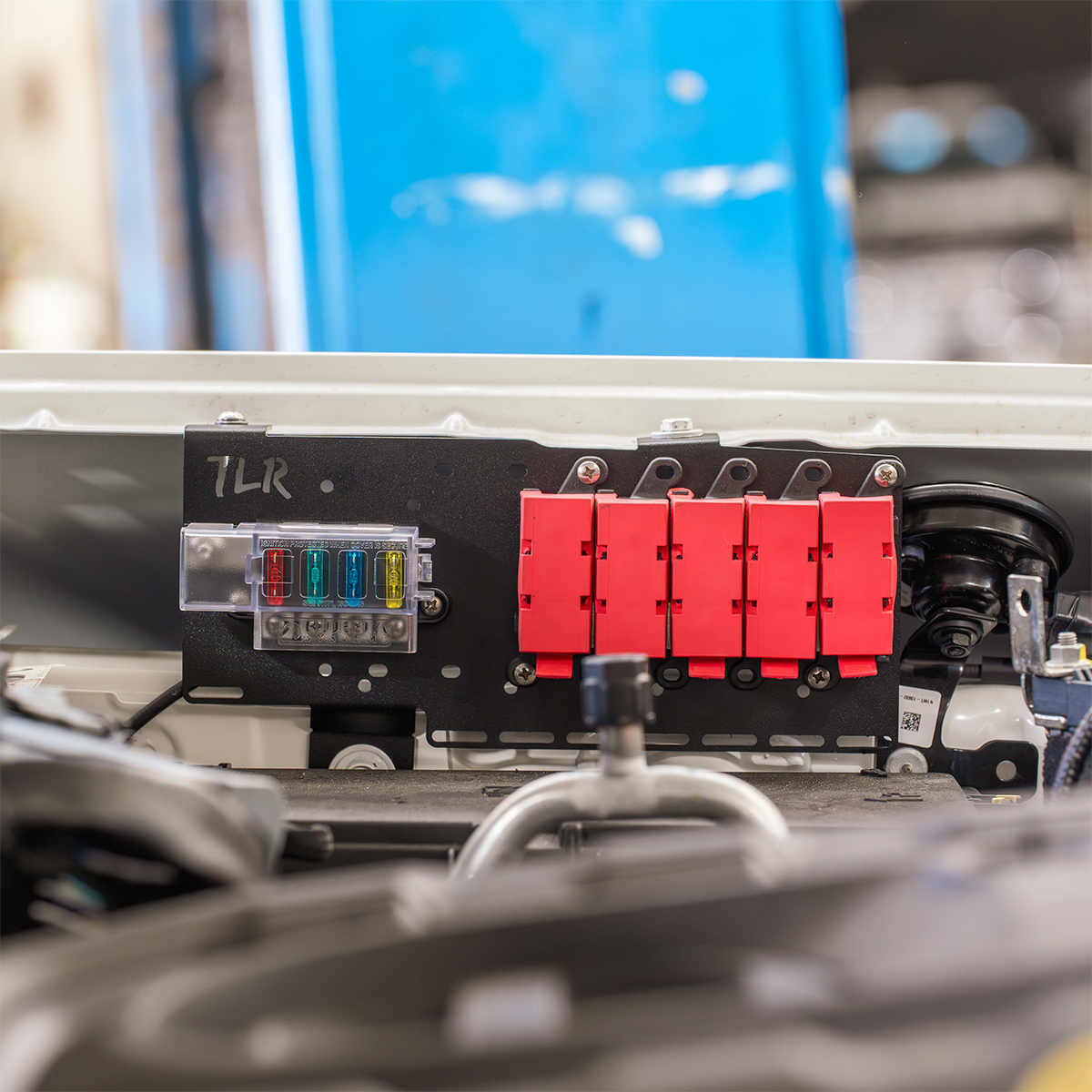

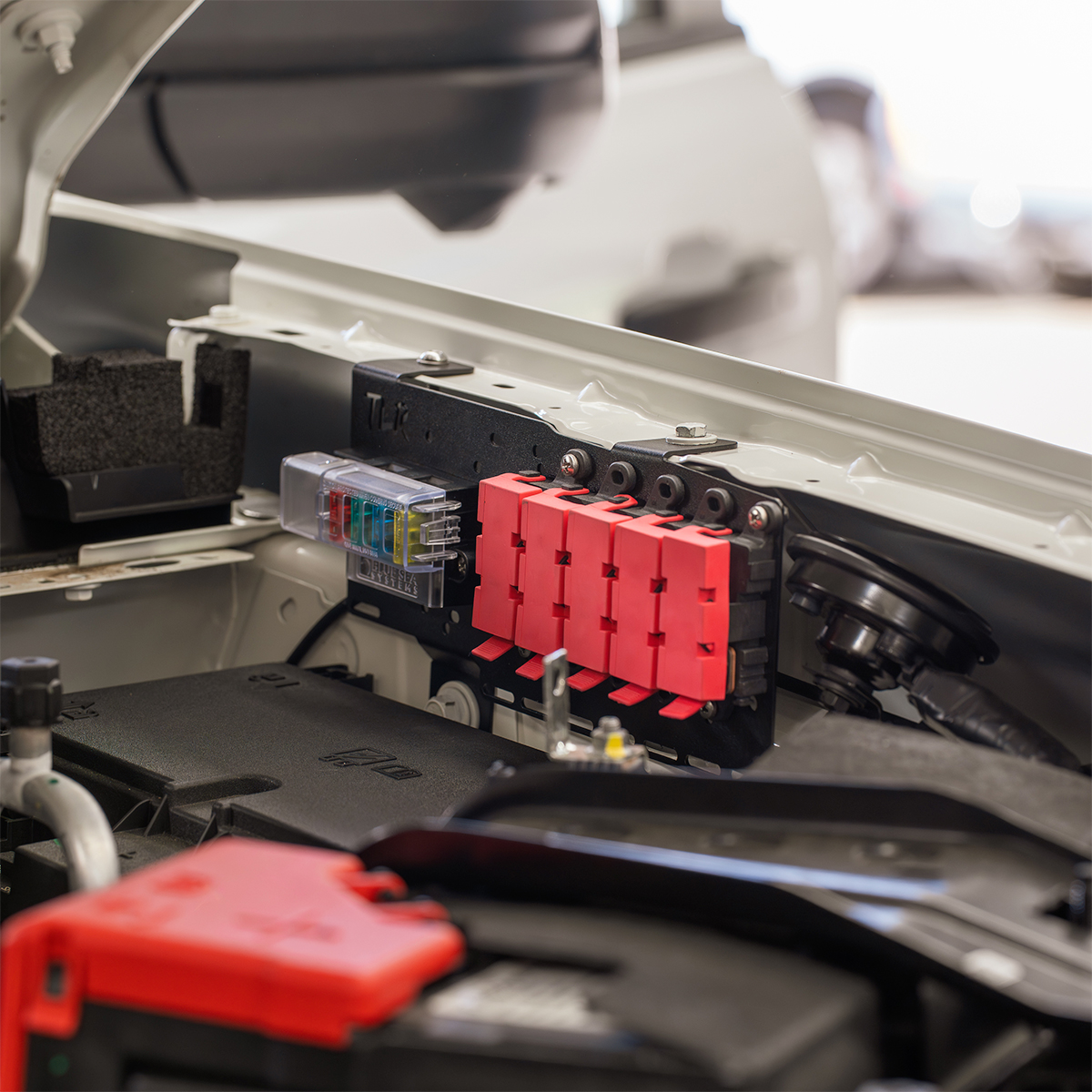

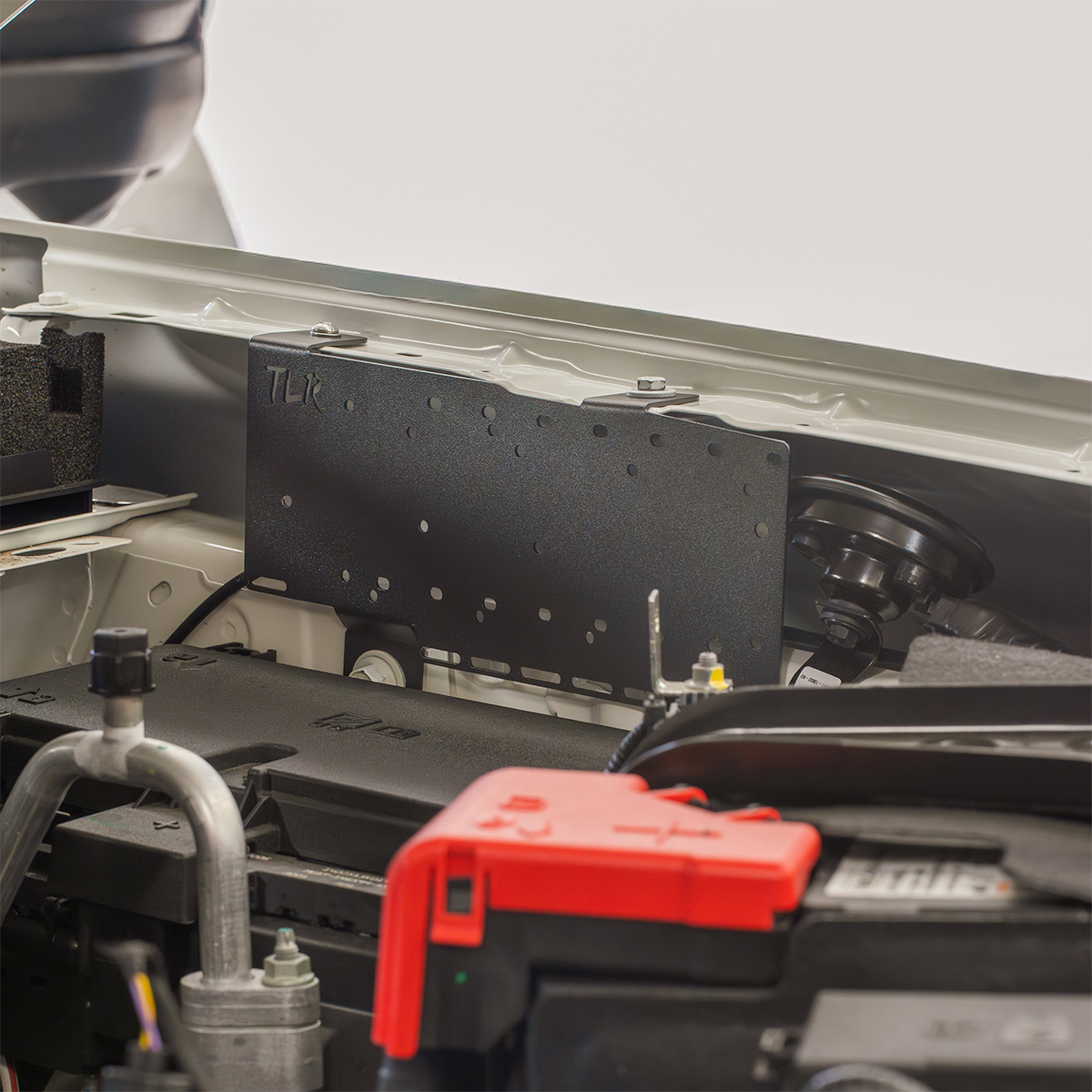

The Electrical Bracket locates along the right-hand side of the engine bay. This design locates the electrical accessory close to the battery; there are a generous number of mounting holes which accommodate several components in various configurations to help achieve each desired setup and has been designed with cable tie slots along both sides of the bracket to help provide a neat and tidy solution.

for Maximum fuse module locations, use the Bussmann midi fuse modules. there are holes to accommodate up to 7 Bussmann modules which can provide 1 x input and 6 x midi fuse modules.

NOTE: Compatible with All Ford Ranger Superduty and Ford Ranger “XL” models only.

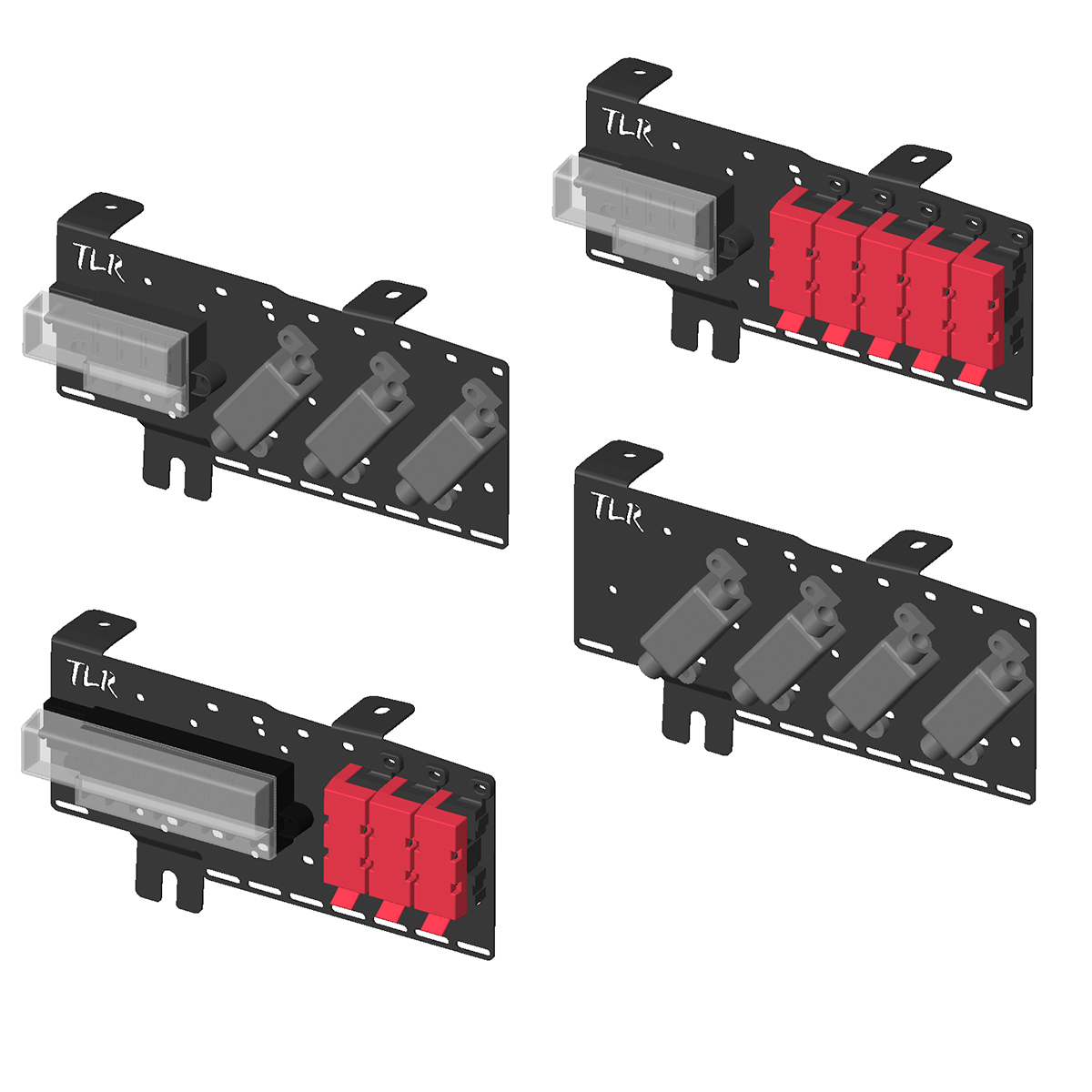

The pre-cut holes allow for fitting:

• Single Midi fuse holders
• Twin Midi fuse holders
• 12v Circuit breakers
• Electrical relays
• Buzz Bar
• Terminal posts

Features:

• Versatile Compatibility – Accommodates Various Configurations.
• Ease of Access Design – Mounts neatly over the OE battery.
• Durable Construction – Laser cut from 1.50mm Stainless Steel.
• Corrosion Resistant Finish – Powder coated in a black textured finish for aesthetics and added corrosion resistance.
• Hassle Free Installation – Use of pre-existing holes. No drilling of the body work required.

Includes:

• 1 x TLR814002 TLR Products Electrical Accessory Bracket
• 1 x Fitting Kit

Note:

• Weight: .45 kg
• Dimensions: 300 x 250 x 60 mm
• Warranty: 3 years
• Fitting time: 10 mins
• Plugs and accessories are sold separately.

TLR Products is Australian owned, with all products designed and manufactured in Newcastle, NSW.
