Air Compressor Bracket – Toyota Prado 250 series – Rear Inner Guard

Part Number: TLR682103

The TLR Products Air Compressor Bracket provides a clean and practical solution for securely mounting your ARB Brushless or Brushed, Twin or Single Air Compressor. This bracket set also includes a dedicated mount for the electrical switch and air coupling.

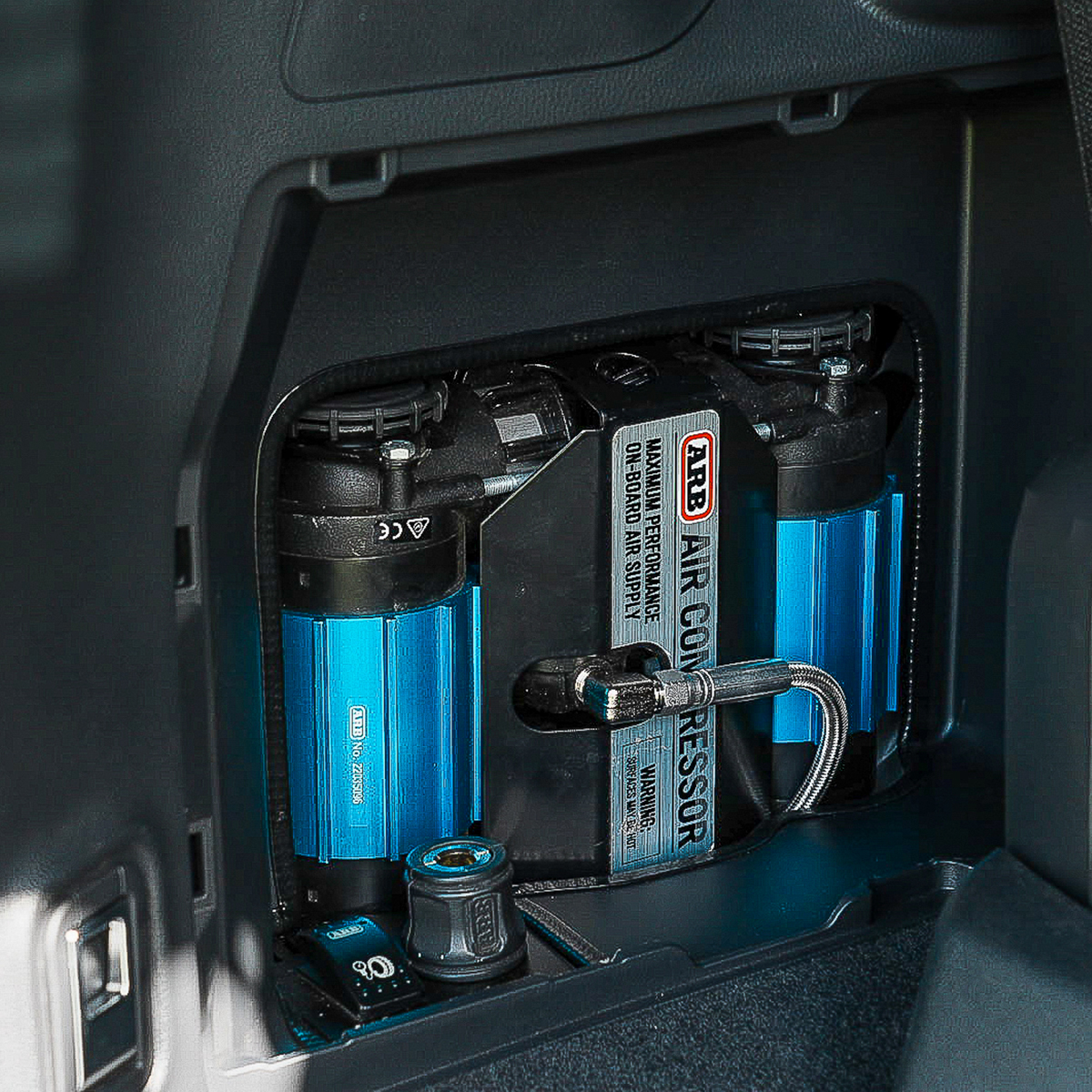

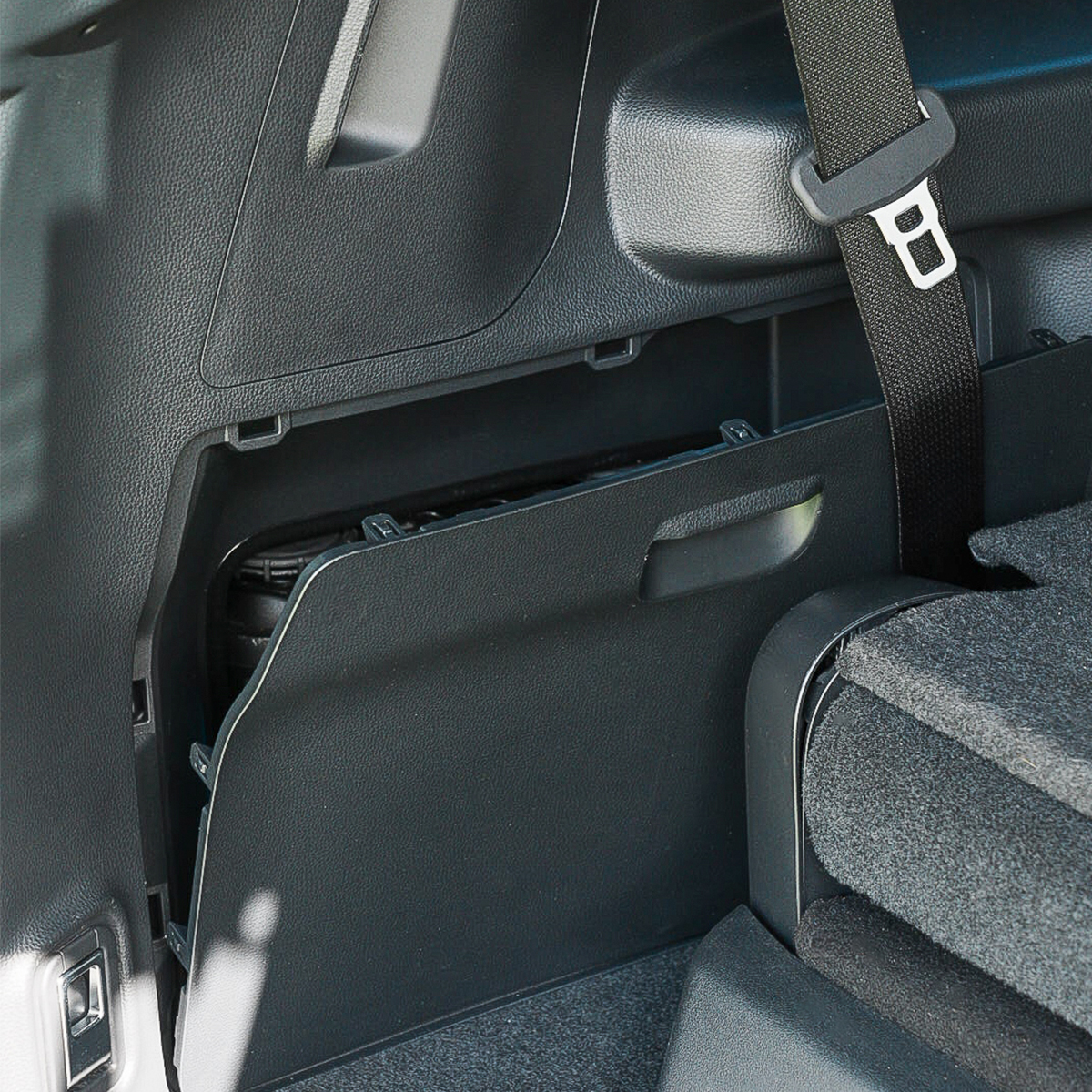

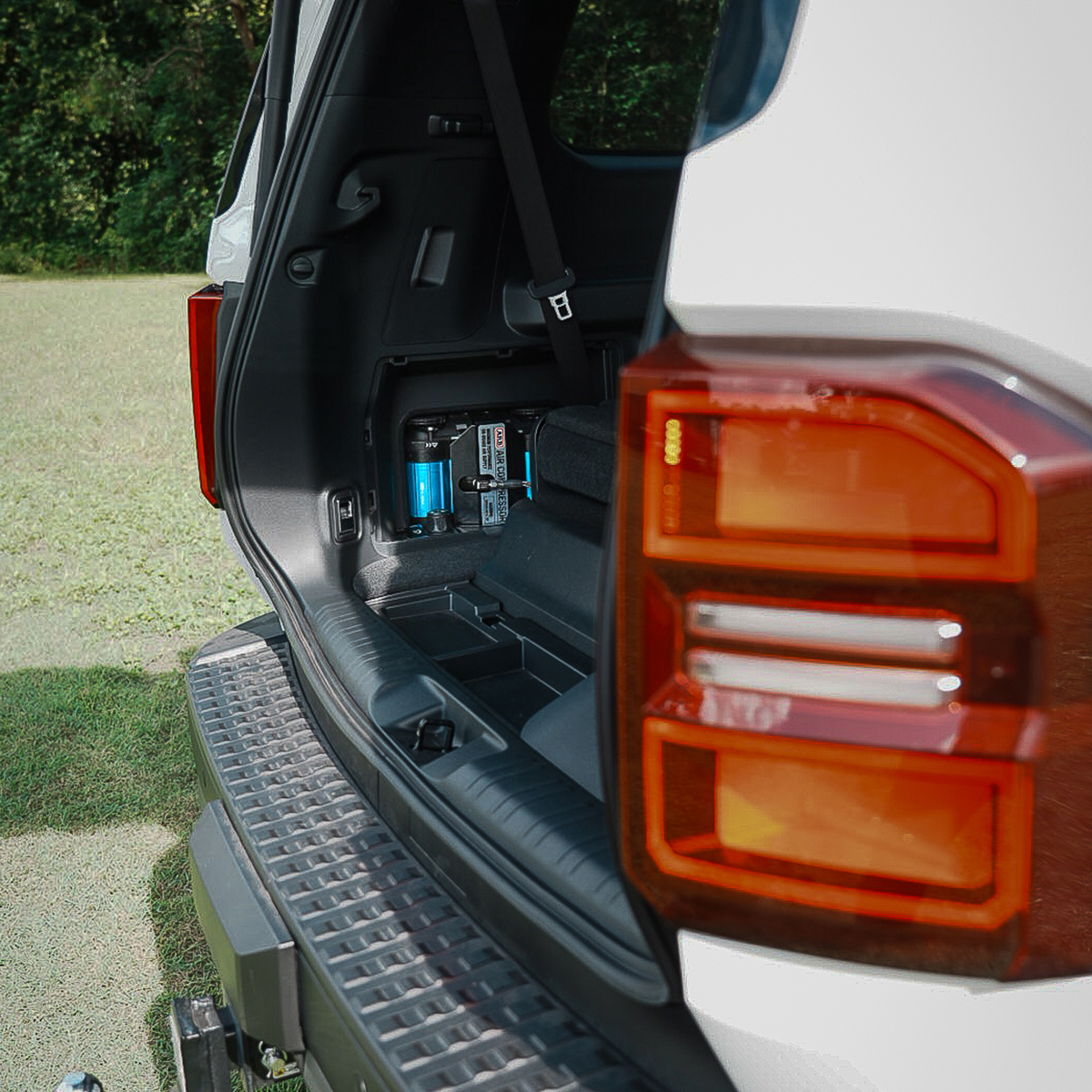

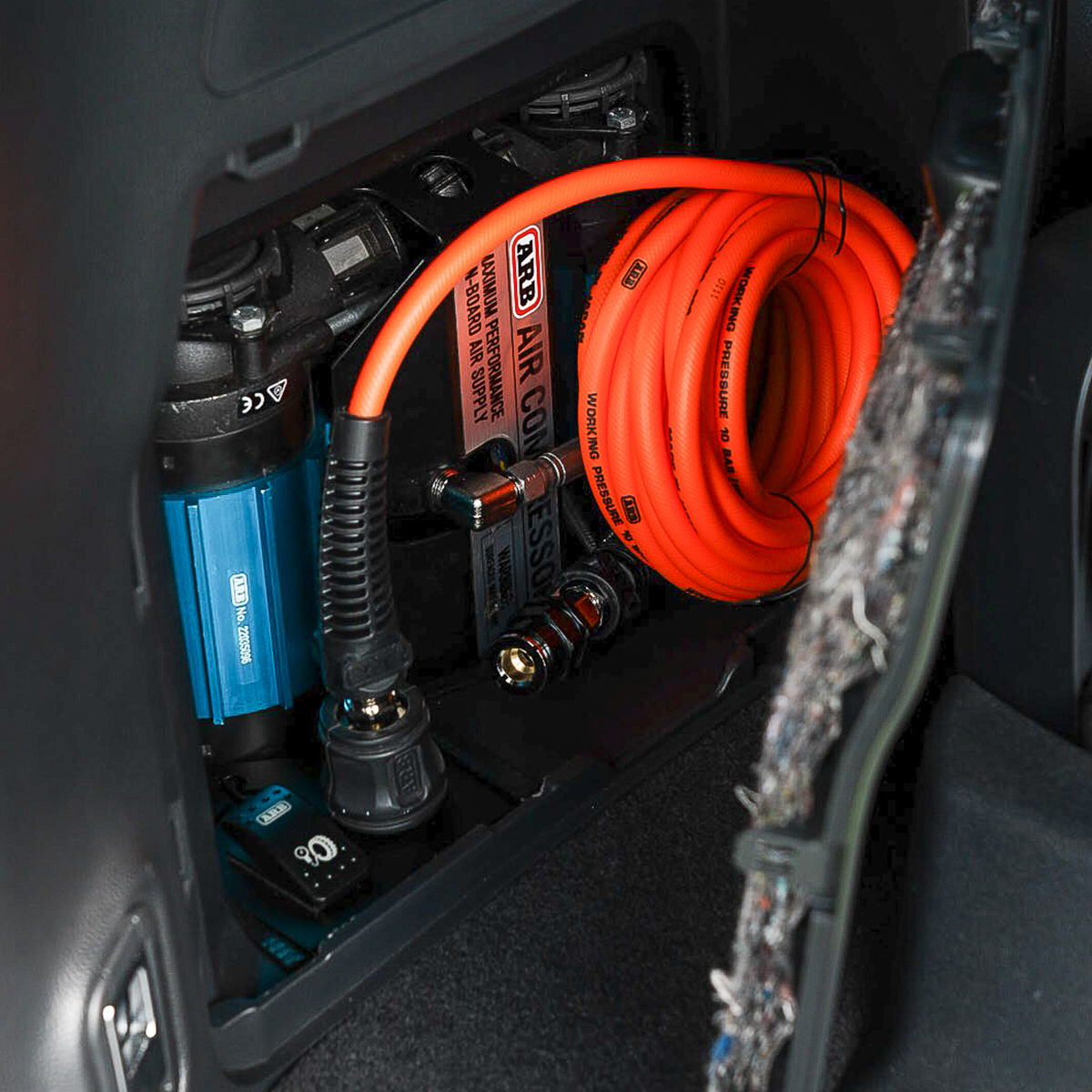

Designed to fit within the open space behind the rear left-hand side inner guard, the bracket positions the compressor far enough back to retain usable storage and leaving room for accessories such as an air hose or tire inflator to be stored conveniently within the compartment. It also ensures adequate ventilation around the compressor when the compartment door is open during use.

The Mounting Bracket features six-point mounting, including four structural M8 bolts that utilise OE captive nuts located in the floor panel providing exceptional strength, durability, and long-term reliability.

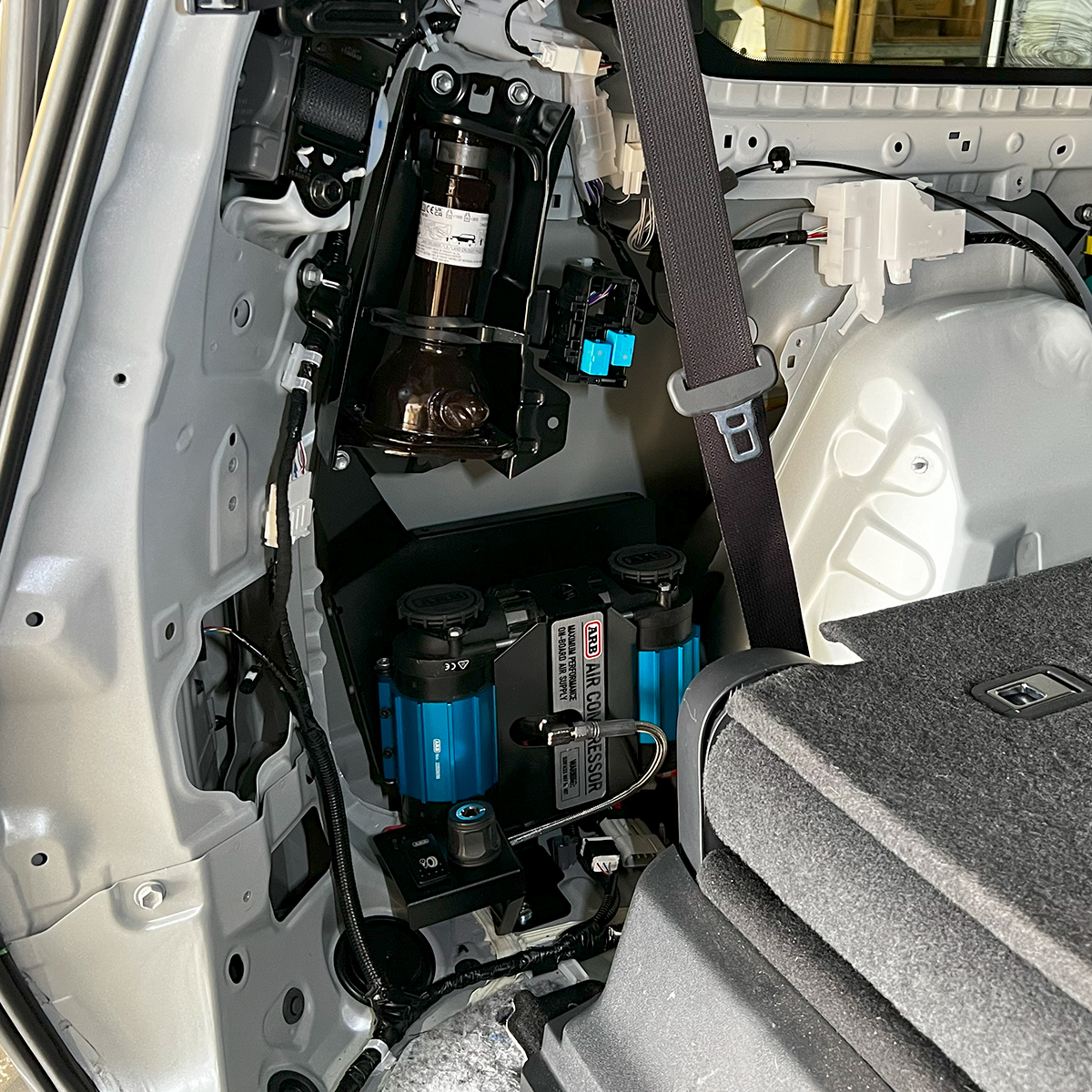

For added versatility, TLR Products offers a compatible Air Tank Mounting Bracket (TLR682106) which includes a high-mount switch and coupling bracket.

Additional Components Required for installation (All Sold Separately or included in our Complete Kit TLR682108).

• 1x Preferred Choice of ARB Air Compressor.
• 1x ARB Pump Up Kit (171302V2)
• 1x ARB Hose Reinforced JIC-4 0.3 Meter (0740201)
• 1x ARB Adapter Fitting (0740104)
• 1x ARB Air Coupling (0740111)

Features:

• Versatile Compatibility – Suits both ARB Brushless OR Brushed, Twin OR Single Air Compressor models.
• Space Saving Design – Fits in the open space in rear quarter of the vehicle.

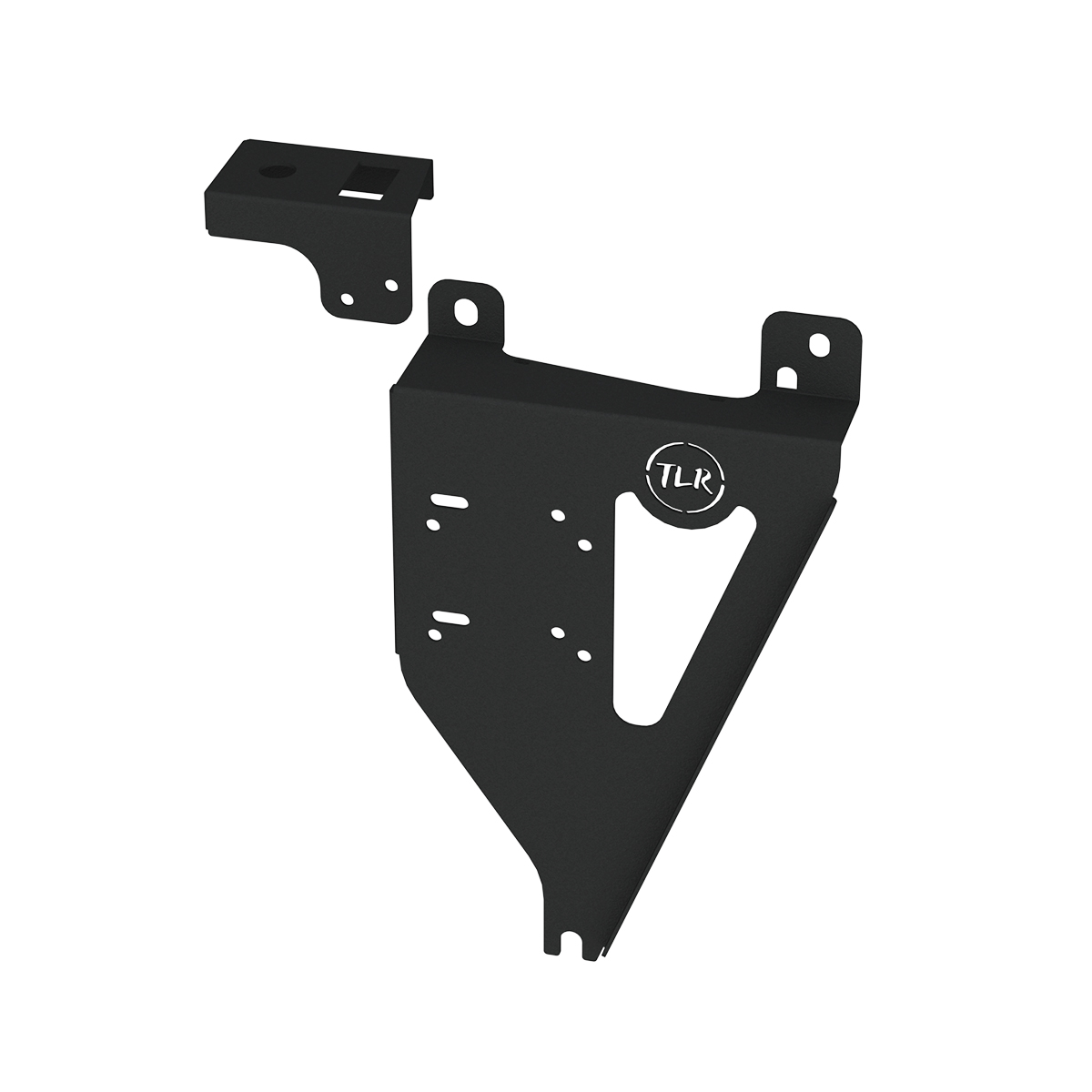

• Durable Construction – Laser cut from zinc-coated 2.00 mm steel.
• Corrosion Resistant Finish – Powder coated in a black textured finish for rust protection.
• Hassle Free Installation – Use of pre-existing holes. No drilling of the body work required (Note: plastic cut required in internal storage cavity).
• Comprehensive Kit – Electrical Switch and Coupling mount included.

Includes:

• TLR Products Compressor Bracket set.
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight: 4 kg
• Dimensions: 520 x 380 x 160 mm
• Warranty: 3 years
• Fitting time: 20 mins
• Bracket set only. Compressor, fittings and accessories sold separately.

DOWNLOAD BROCHURE HERE.

DOWNLOAD FITTING INSTRUCTIONS HERE.

TLR Products is Australian owned, with all manufactured products designed and made in Newcastle, NSW.
